Auth & Security

2.1 Authentication

Beginning from v1, all API calls require Authentication. The service uses HTTP signature based authentication.

This means to successfully authenticate with the APIs you must provide a valid signature to your request.

This consists in adding an element to the header of the request:

Header	Description
`X-SIGNATURE`	The signature header of the request

See section 4.1 for information about how to create a valid signature.

2.2 HTTPS

All API calls have to be made through a secure https connection.

4. Security

4.1 Authentication

Digital signatures can ensure the reliability and anti-repudiation of the API data transmitted. Each shop is assigned a shopId by Kenz'up. Each client can then provide a list of terminalId they intend to use. The API access is authenticated against the shopId and terminalId by the RSA signature.

Client and Kenz'up must exchange RSA keys before making API calls, and the length of RSA key must be at least 2048 bits, but we recommend to use a 3072 bits key. When making API call to Kenz'up, client uses the RSA private key to sign the API request. After receiving the API request, Kenz'up will use the client’s RSA public key to verify whether the signature is matched to the content of API request. Similarly, when client receives the API response, it is highly recommended that client verifies the signature of API response by using Kenz'up’s RSA public key.

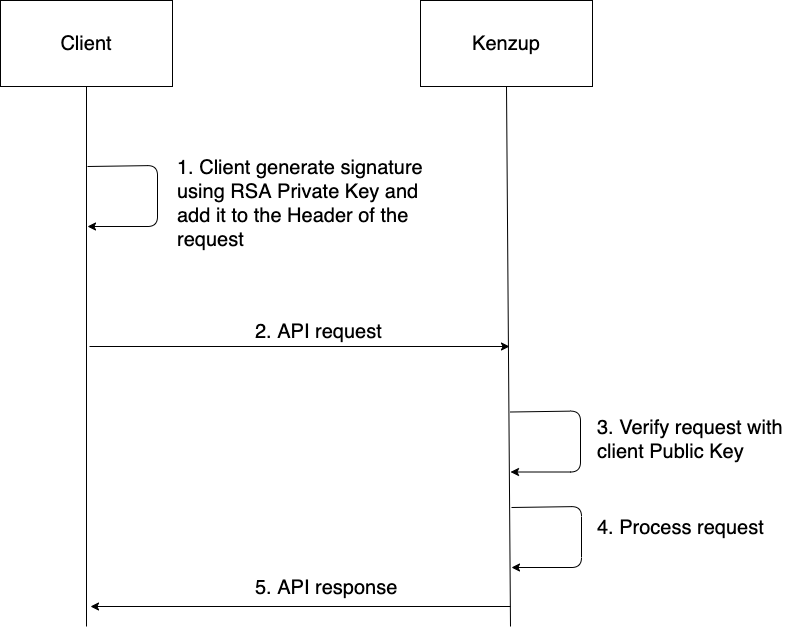

Here is an overview of how the signing process works:

Signing process

4.2 Signing the request

To sign a request it is necessary to add a specific content to the X-SIGNATURE header.

The content looks something like this (line-breaks are added for readability, but should not be included):

client_id=POS_123456789,
host=kenzup.com,
method=POST,
timestamp=2020-02-12T19:20:30+01:00,
uri=/api/v1/shops/1234/earn-requests,  payload=eyJhbW91bnQiOiAxMi40NSwgImN1cnJlbmN5IjogIk1BRCIsICJvcmRlcl9pZCI6ICJUWF8xMjM0NTY3ODkiLCAidGVybWluYWxfaWQiOiAiUE9TXzEyMzQ1Njc4OSIsICJ0aW1lIjogIjIwMjAtMDItMTJUMTk6MjA6MzArMDE6MDAifQ==,
signature=bc8mNftoUqwgBi1TepFxwk4KtzBa/Y3vgnPKYZd1ZkxU/Fa9He3suRtKMlvL3woXChegLo46A50nMk1mAqC5dZq0D9OPRdm8aY+3855fSoMCT2e6JYxOCZT7OtVj3czDj6bn3rNLKWkr+zPP+pAd55Atiu1udBf163SBcc6hP7M=

4.3 Creating the X-SIGNATURE content

The content is generate starting from a canonical message with this format:

"client_id={client_id}, host={host}, method={method}, payload={payload_digest}, timestamp={timestamp}, uri={uri}"

Parameter	Description
`client_id`	This represent the client/terminal id of the key used to sign the request
`host`	The host the request is made to (e.g. `kenzup.com`, `staging-app.kenzup.com`)
`method`	The method of the request (`GET`, `POST`, `PUT`, etc.). It must be uppercase.
`payload`	The Base64 representation of the request payload converted to JSON format (see section 4.4 for more details). If the request has no payload, this should be the Base64 representation of an empty payload `base64({})`
`timestamp`	Timestamp of the request. Must include Timezone.
`uri`	The `uri` of the request (e.g. `/api/v1/shops/1234/earn-requests`)

Here is an example of how the signature would be generated for an Earn-only request.

Assuming this scenario:

Request: POST /api/v1/shops/1234/earn-requests

Params:

{
 "terminal_id": "POS_123456789",
 "amount": 12.45,
 "currency": "MAD",
 "order_id": "TX_123456789",
 "time": "2020-02-12T19:20:30+01:00"
}

1. Create the canonical message

canonical_message = "client_id=POS_123456789, host=kenzup.com, method=POST, timestamp=2020-02-12T19:20:30+01:00, uri=/api/v1/shops/1234/earn-requests"

2. Create the Base64 representation of the payload with keys sorted alphabetically

base64_payload = base64({"amount": 12.45, "currency": "MAD", "order_id": "TX_123456789", "terminal_id": "POS_123456789", "time": "2020-02-12T19:20:30+01:00"})

3. Add the encoded payload to the canonical message

canonical_message = "client_id=POS_123456789, host=kenzup.com, method=POST, timestamp=2020-02-12T19:20:30+01:00, uri=/api/v1/shops/1234/earn-requests,  payload=eyJhbW91bnQiOiAxMi40NSwgImN1cnJlbmN5IjogIk1BRCIsICJvcmRlcl9pZCI6ICJUWF8xMjM0NTY3ODkiLCAidGVybWluYWxfaWQiOiAiUE9TXzEyMzQ1Njc4OSIsICJ0aW1lIjogIjIwMjAtMDItMTJUMTk6MjA6MzArMDE6MDAifQ=="

4. Hash the canonical message using a SHA256 algorithm and sign it using your RSA private key using PKCS#1 v1.5 encryption.

digest = SHA256.new()
digest.update(canonical_message)
signer = PKCS1_v1_5.new(private_key)
signature = signer.sign(digest)

5. Base64-encode the signature

The result should be something like this:

jz57y8wC9RFjXwOqRwOGs0Wp7ehEkWggyJ8KQ/wMGvU5p85HkfYGJtM6VY4zfFgG39zlb8qKNzTEopi4WrsIKP5UNzgwdXYztiFaJuEwcjy4wHe6Q6sE0eG43gYk+xOO+ZBSqxEHOM5j/rm6Dxt5EiDvhdJPd88vYsNY5q8YvjM=

6. Add the signature to the canonical message to create the header signature. The `signature` element must be the last one.

header_signature = "client_id=POS_123456789, host=kenzup.com, method=POST, timestamp=2020-02-12T19:20:30+01:00, uri=/api/v1/shops/1234/earn-requests,  payload=eyJhbW91bnQiOiAxMi40NSwgImN1cnJlbmN5IjogIk1BRCIsICJvcmRlcl9pZCI6ICJUWF8xMjM0NTY3ODkiLCAidGVybWluYWxfaWQiOiAiUE9TXzEyMzQ1Njc4OSIsICJ0aW1lIjogIjIwMjAtMDItMTJUMTk6MjA6MzArMDE6MDAifQ==, signature=jz57y8wC9RFjXwOqRwOGs0Wp7ehEkWggyJ8KQ/wMGvU5p85HkfYGJtM6VY4zfFgG39zlb8qKNzTEopi4WrsIKP5UNzgwdXYztiFaJuEwcjy4wHe6Q6sE0eG43gYk+xOO+ZBSqxEHOM5j/rm6Dxt5EiDvhdJPd88vYsNY5q8YvjM="

7. Add `X-SIGNATURE: <header_signature>` to the header

4.4 Hashing the payload

The APIs require payload to be included into the signtature evaluation to guarantee it has not been tempered on transit.

To allow the server to validate it, the payload must be converted into a JSON representation and then encoded into Base64 format.

The format before hashing must be a valid JSON.

// CORRECT
{"amount": 160, "currency": "MAD", "order_id": "1588675781", "terminal_id": "Terminal_001", "time": "2020-05-05T10:49:41+00:00"}

// CORRECT
{"amount":160,"currency":"MAD","order_id":"1588675781","terminal_id":"Terminal_001","time":"2020-05-05T10:49:41+00:00"}

// WRONG: JSON requires double-quotes
{'amount': 160, 'currency': 'MAD', 'order_id': '1588675781', 'terminal_id': 'Terminal_001', 'time': '2020-05-05T10:49:41+00:00'}

4.5 Error codes for signature

Error Code	Description
`SignatureAuthenticationFailed`	Missing or malformed `X-SIGNATURE` header
`MissingSignatureException`	Missing `X-SIGNATURE` header
`MissingHttpSignatureParamException`	One or more params missing from `X-SIGNATURE` header
`BadHttpSignatureParamException`	One or more values missing from `X-SIGNATURE` header
`BadHttpSignatureUriException`	`uri` not equal to request path
`BadHttpSignatureHostException`	`host` not equal to request host
`BadHttpSignatureMethodException`	`method` not equal to request method
`BadHttpSignaturePayloadException`	`payload` hash not equal to request params hash
`BadHttpSignatureTimestampException`	`timestamp` is wrong. This can happen in three scenarios: - timestamp is in the future - timestamp is more than 5 minutes in the past - timestamp does not include timezone

4.6 Signing example

This is an example of how the signature can be created using multiple scripring forms:

1. Python

import json
from datetime import datetime, timezone
from base64 import b64decode, b64encode
from Crypto.PublicKey import RSA
from Crypto.Signature import PKCS1_v1_5
from Crypto.Hash import SHA256
import pytz
import uuid
def create_signature(uri, payload, method, client_id, host, timestamp, private_key):
    json_payload = json.dumps(payload, sort_keys=True)
    b64_payload = b64encode(json_payload.encode('utf-8')).decode()
    #print(b64_payload)
    message = 'client_id={}, host={}, method={}, payload={}, timestamp={}, uri={}'.format(
        client_id,
        host,
        method,
        b64_payload,
        timestamp,
        uri
    )
    private_key = RSA.importKey(private_key)
    digest = SHA256.new()
    digest.update(message.encode('utf-8'))
    signer = PKCS1_v1_5.new(private_key)
    signature = b64encode(signer.sign(digest)).decode()
    return signature, b64_payload
    # return f'{message}, signature={signature}'
def create_signature_from_message(message, private_key):
    private_key = RSA.importKey(private_key)
    digest = SHA256.new()
    digest.update(message.encode('utf-8'))
    signer = PKCS1_v1_5.new(private_key)
    signature = b64encode(signer.sign(digest)).decode()
    return signature
def verify_sign(public_key, signature, data):
    rsakey = RSA.importKey(public_key)
    signer = PKCS1_v1_5.new(rsakey)
    digest = SHA256.new()
    digest.update(data.encode('utf-8'))
    if signer.verify(digest, b64decode(signature)):
        return True
    return False
EST = pytz.timezone('Africa/Casablanca')
date_time = datetime.now(EST)
private_key = '-----BEGIN RSA PRIVATE KEY-----\nMIIE\n-----END RSA PRIVATE KEY-----'
uri = '/api/v1/shops/f09fbdb6-3245-4f2b-a928-23669a0b93a3/earn-requests'
method = 'POST'
host = 'staging-app.kenzup.com'
client_id = 'renault-staging-shop'
timestamp = date_time.strftime("%Y-%m-%dT%H:%M:%S%z")
order_id = str(uuid.uuid1())
terminal_id = str(uuid.uuid4())
data = {'agent_id':None, 'agent_mobilenumber':None, 'agent_name':None, 'amount':1.0, 'currency':'MAD', 'customer':None, 'force':False, 'order_id':order_id, 'terminal_id':terminal_id , 'time':timestamp}
data_to_show = '{\\"agent_id\\":null, \\"agent_mobilenumber\\":null, \\"agent_name\\":null, \\"amount\\":1.0, \\"currency\\":\\"MAD\\", \\"customer\\":null, \\"force\\":false, \\"order_id\\":\\"'+order_id+'\\", \\"terminal_id\\":\\"'+terminal_id+'\\", \\"time\\":\\"'+timestamp+'\\"}'
signature, payload = create_signature(uri=uri, payload=data, method=method, host=host, client_id=client_id, timestamp=timestamp, private_key=private_key)
message='client_id='+client_id+', host='+host+', method='+method+', payload='+payload+', timestamp='+timestamp+', uri='+uri
print ('curl  --request "'+method+'" --url "https://'+host+uri+'" --header "content-type: application/json" --header "X-SIGNATURE: '+message+', signature='+signature+'" --data "'+data_to_show+'"')

2. Java

import java.util.Base64;
import java.util.UUID;
import java.time.ZoneId;
import java.time.ZonedDateTime;
import java.time.format.DateTimeFormatter;
import org.bouncycastle.crypto.digests.SHA256Digest;
import org.bouncycastle.crypto.signers.PSSSigner;
import org.bouncycastle.jce.provider.BouncyCastleProvider;
import org.bouncycastle.util.io.pem.PemObject;
import org.bouncycastle.util.io.pem.PemReader;
import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.fasterxml.jackson.databind.ObjectWriter;
public class SignatureGenerator {
    static {
        Security.addProvider(new BouncyCastleProvider());
    }
    public static void main(String[] args) {
        String uri = "/api/v1/shops/f09fbdb6-3245-4f2b-a928-23669a0b93a3/earn-requests";
        String method = "POST";
        String host = "staging-app.kenzup.com";
        String client_id = "renault-staging-shop";
        String private_key = "-----BEGIN RSA PRIVATE KEY-----\nMIIE\n-----END RSA PRIVATE KEY-----";
        ObjectMapper mapper = new ObjectMapper();
        UUID order_id = UUID.randomUUID();
        UUID terminal_id = UUID.randomUUID();
        ZonedDateTime timestamp = ZonedDateTime.now(ZoneId.of("Africa/Casablanca"));
        String data_to_show = "{\"agent_id\":null, \"agent_mobilenumber\":null, \"agent_name\":null, \"amount\":1.0, \"currency\":\"MAD\", \"customer\":null, \"force\":false, \"order_id\":\"" + order_id.toString() + "\", \"terminal_id\":\"" + terminal_id.toString() + "\", \"time\":\"" + timestamp.format(DateTimeFormatter.ofPattern("yyyy-MM-dd'T'HH:mm:ssXXX")) + "\"}";
        try {
            ObjectWriter writer = mapper.writer().with(SerializationFeature.ORDER_MAP_ENTRIES_BY_KEYS);
            String payload = Base64.getEncoder().encodeToString(writer.writeValueAsString(data).getBytes("UTF-8"));
            String message = String.format("client_id=%s, host=%s, method=%s, payload=%s, timestamp=%s, uri=%s",
                                            client_id, host, method, payload, timestamp.format(DateTimeFormatter.ofPattern("yyyy-MM-dd'T'HH:mm:ssXXX")), uri);
            PemReader pemReader = new PemReader(new StringReader(private_key));
            PemObject pemObject = pemReader.readPemObject();
            byte[] privateKeyBytes = pemObject.getContent();
            pemReader.close();
            PSSSigner signer = new PSSSigner(new SHA256Digest());
            signer.init(true, new RSAKeyParameters(true, new BigInteger(1, privateKeyBytes), new BigInteger(1, pemObject.getContent())));
            signer.update(message.getBytes("UTF-8"));
            byte[] signatureBytes = signer.generateSignature();
            String signature = Base64.getEncoder().encodeToString(signatureBytes);
            System.out.println(String.format("curl --request \"%s\" --url \"https://%s%s\" --header \"content-type: application/json\" --header \"X-SIGNATURE: %s, signature=%s\" --data \"%s\"", method, host, uri, message, signature, data_to_show));
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}

3. PHP

<\?php
use \Firebase\JWT\JWT;
use \DateTimeZone;
use \DateTime;
require __DIR__ . '/vendor/autoload.php';
function create_signature($uri, $payload, $method, $client_id, $host, $timestamp, $private_key) {
    $json_payload = json_encode($payload, JSON_UNESCAPED_SLASHES|JSON_UNESCAPED_UNICODE|JSON_PRESERVE_ZERO_FRACTION);
    $b64_payload = base64_encode($json_payload);
    $message = "client_id=$client_id, host=$host, method=$method, payload=$b64_payload, timestamp=$timestamp, uri=$uri";
    $private_key = openssl_pkey_get_private($private_key);
    openssl_sign($message, $signature, $private_key, OPENSSL_ALGO_SHA256);
    return array(base64_encode($signature), $b64_payload);
}
function create_signature_from_message($message, $private_key) {
    $private_key = openssl_pkey_get_private($private_key);
    openssl_sign($message, $signature, $private_key, OPENSSL_ALGO_SHA256);
    return base64_encode($signature);
}
function verify_sign($public_key, $signature, $data) {
    $rsakey = openssl_pkey_get_public($public_key);
    $result = openssl_verify($data, base64_decode($signature), $rsakey, OPENSSL_ALGO_SHA256);
    return $result == 1;
}
$EST = new DateTimeZone('Africa/Casablanca');
$date_time = new DateTime('now', $EST);
$private_key = '-----BEGIN RSA PRIVATE KEY-----
MIIE...
-----END RSA PRIVATE KEY-----';
$uri = '/api/v1/shops/f09fbdb6-3245-4f2b-a928-23669a0b93a3/earn-requests';
$method = 'POST';
$host = 'staging-app.kenzup.com';
$client_id = 'renault-staging-shop';
$timestamp = $date_time->format("Y-m-d\TH:i:sO");
$order_id = uniqid();
$terminal_id = uniqid();
$data = array('agent_id' => null, 'agent_mobilenumber' => null, 'agent_name' => null, 'amount' => 1.0, 'currency' => 'MAD', 'customer' => null, 'force' => false, 'order_id' => $order_id, 'terminal_id' => $terminal_id , 'time' => $timestamp);
$data_to_show = '{"agent_id":null, "agent_mobilenumber":null, "agent_name":null, "amount":1.0, "currency":"MAD", "customer":null, "force":false, "order_id":"'.$order_id.'", "terminal_id":"'.$terminal_id.'", "time":"'.$timestamp.'"}';
list($signature, $payload) = create_signature($uri, $data, $method, $client_id, $host, $timestamp, $private_key);
$message = "client_id=$client_id, host=$host, method=$method, payload=$payload, timestamp=$timestamp, uri=$uri";
echo 'curl  --request "'.$method.'" --url "https://'.$host.$uri.'" --header "content-type: application/json" --header "X-SIGNATURE: '.$message.', signature='.$signature.'" --data "'.$data_to_show.'"';
\?>

4. Bash

#!/bin/bash

# Import the private key
privateKeyFile=$(mktemp)
privateKey="..." # See 4.5 for Test Vectors
echo "${privateKey}" > ${privateKeyFile}

# Import the public key (Optional)
# This public key is necessary only if you want to verify the
# signature before making the request
publicKeyFile="${privateKeyFile}.pub"
publicKey="..." # See 4.5 for Test Vectors
echo "${publicKey}" > ${publicKeyFile}

# Request parameters
sandboxShopId="6842310a-8e80-4138-8ec3-f59905019053"
clientId="client-0"
host="staging-app.kenzup.com"
apiVersion="v2"
method="POST"
terminalId=$(uuidgen)
orderId=$(uuidgen)
orderTimestamp="$(date -u '+%F %TZ')"
signatureTimestamp="$(date -u '+%F %TZ')"
uri="/api/${apiVersion}/shops/${sandboxShopId}/payment-requests"
data="{\"amount\": 1, \"currency\": \"MAD\", \"order_id\": \"${orderId}\", \"terminal_id\": \"${terminalId}\", \"time\": \"${orderTimestamp}\"}"

# Hash the payload using base64
payload=`echo -n "${data}" | base64`

# Create canonical message
message="client_id=${clientId}, host=${host}, method=${method}, payload=${payload}, timestamp=${signatureTimestamp}, uri=${uri}"

# Create temporary files to hold the signature
messageFile=$(mktemp)
signatureFile=$(mktemp)
echo -n "${message}" > ${messageFile}

# Generate the signature
openssl dgst -sha256 -out "${signatureFile}" -sign "${privateKeyFile}" "${messageFile}"
openssl dgst -sha256 -verify "${publicKeyFile}" -signature "${signatureFile}" "${messageFile}"
signature=$(cat "${signatureFile}" | base64)

echo "DATA:"
echo "${data}"
echo ""
echo "BASE64 PAYLOAD:"
echo "${payload}"
echo ""
echo "SIGNATURE:"
echo "${signature}"
echo ""
echo "X-SIGNATURE HEADER:"
echo "${message}, signature=${signature}"
echo ""

# Submit the request using cURL
curl --request "${method}" \
  --url "https://${host}${uri}" \
  --header 'content-type: application/json' \
  --header "X-SIGNATURE: ${message}, signature=${signature}" \
  --data "${data}"

4.7 Defining a valid certificate

On joining the Kenz'up service, the client will be invited in sharing a list of terminal id's associated with a shop and providing a public key to be used to validate the signature.

Example:

Terminal ID	Shop Name	Public Key
Terminal_001	Shop 1	MIGfMA0GCSqGSIb3DQEBA...
Terminal_002	Shop 1	BAQUAA4GNADCBiQKBgQD...
Terminal_003	Shop 2	DJIVAUvYhfpup5hUZYVv1dE..

4.8 Test vectors

You can use these values to test your implementation of the signature algorithm.

These are testing values. Do not use these values in production.

Client ID:

client_id=client-0

Shop ID

shop_id=6842310a-8e80-4138-8ec3-f59905019053

Private Key:

Public Key:

2.1 Authentication​

2.2 HTTPS​

4. Security ​

4.1 Authentication​

4.2 Signing the request​

4.3 Creating the X-SIGNATURE content​

1. Create the canonical message​

2. Create the Base64 representation of the payload with keys sorted alphabetically​

3. Add the encoded payload to the canonical message​

4. Hash the canonical message using a SHA256 algorithm and sign it using your RSA private key using PKCS#1 v1.5 encryption.​

5. Base64-encode the signature​

6. Add the signature to the canonical message to create the header signature. The signature element must be the last one.​

7. Add X-SIGNATURE: <header_signature> to the header​

4.4 Hashing the payload​

4.5 Error codes for signature​

4.6 Signing example​

1. Python​

2. Java​

3. PHP​

4. Bash​

4.7 Defining a valid certificate​

4.8 Test vectors​
